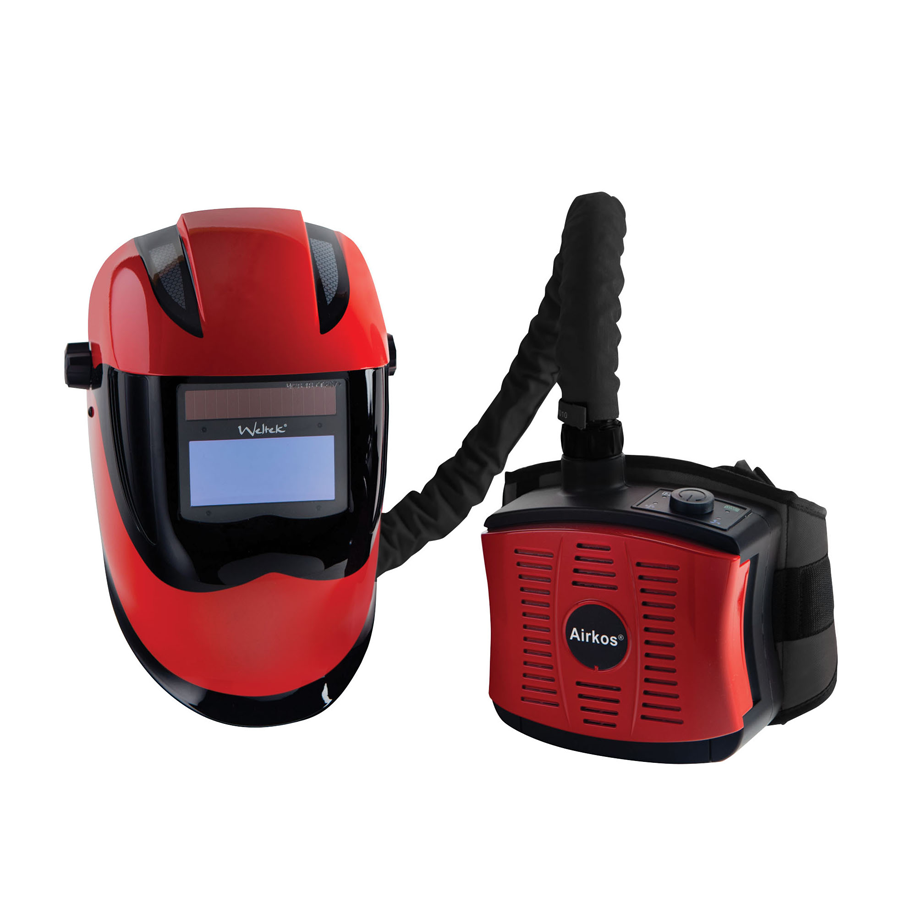

Kapio Red Side Vision S4 Airfed Welding/Grinding System

  • £558.00
    Unit price per
Incl VAT

The Kapio* S4 combines several key features:

The excellent ergonomics provides perfect protection of the forehead, the ears and the neck, while keeping the weight under 460g.

Equipped with side vision in shade DIN 5 , the Kapio® provides a 160° vision to the welder, for improved safety and advanced comfort. These side vision are made out of transparent shade DIN 5 polycarbonate.
In each graphic version, the Kapio* is available with or without these side vision.

The Kapio® S4 is equipped with the longitudinal headgear with 4 settings: height, width, angle, and longitudinal adjustment for welders operating with corrective glasses.

The 4 arc sensors are associated to a very fast switching speed of 0.2ms for a flawless detection of the welding arc, with all welding processes.
With excellent 1/1/1/2 optical classes, the liquid crystals of the S4 provide a perfect vision of the fusion during welding.

Inside stepless knobs allow the welder to select the welding shade (from DIN 9 to DIN 13), to adapt the sensitivity of the 4 arc sensors, and to adjust the delay according to the welding application.

The Kapio® shell and all its polycarbonates are certified for grinding with the specific norms EN 166 B and EN 175 B. When selecting the Grind mode, all 4 arc sensors become desactivated and the GRIND LED flashes. The operator is then able to grind with a clear shade DIN 4.

Specification Sheet, Click here
