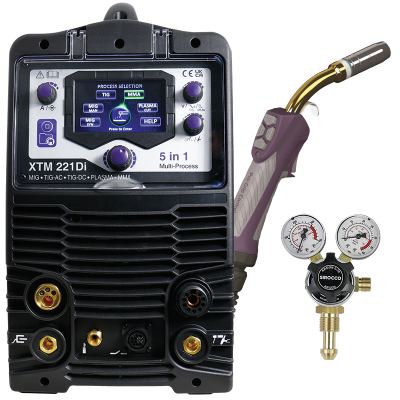

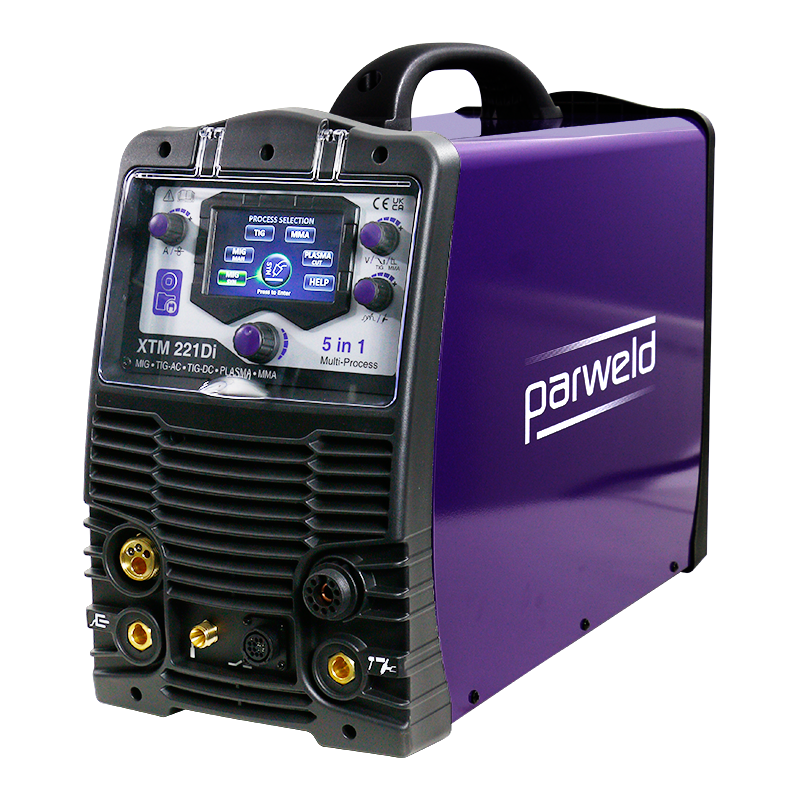

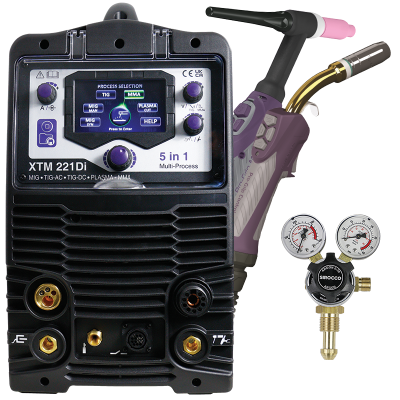

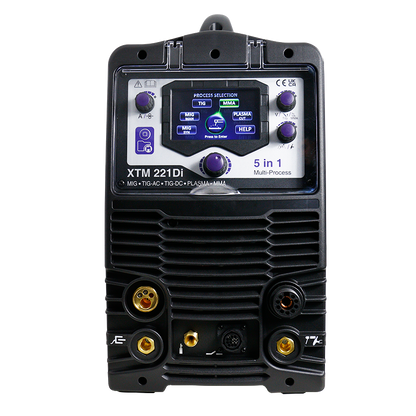

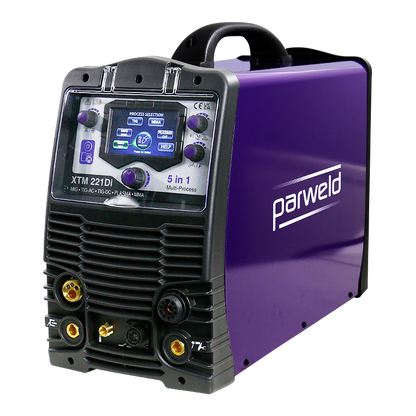

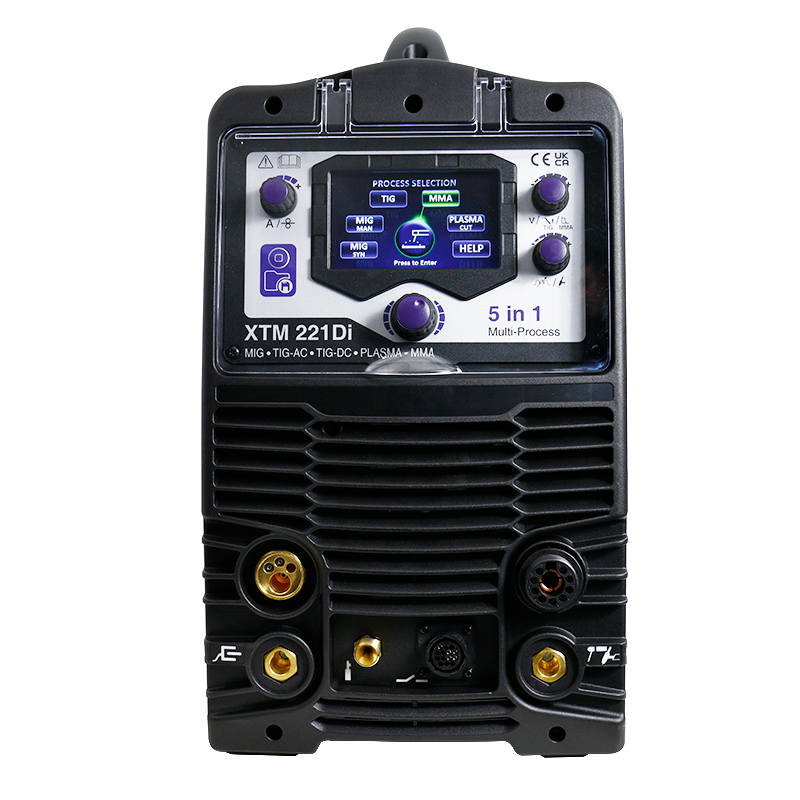

PARWELD XTM221DI 5-IN-1 Multi-Process Inverter
Incl VAT
Capable of using 5 processes, welding has never been easier. This machine uses MIG, AC TIG, DC TIG, MMA and Plasma processes making welding and cutting of Steels & Aluminium seem simple.
Key Features Include:
- Portable Inverter Machine
- Large high quality colour screen with multi-language easy to follow digital interface
- View and adjust machine parameters from the MIG torch handle (*OLED torch optional extra)
- HF Start TIG X Instant swapping between MIG, TIG and Plasma process with one touch of the torch trigger
- Rapid synergic setup for MIG, TIG, MMA, PLASMA
- MIG Weld, down to 0.9mm thick material
- Memory function for all processes to save and recall welding programs
- Supplied with MMA lead set, input cable and 3 gas hoses
- Pulse TIG function for superior arc control
- Dual voltage 110 / 230V

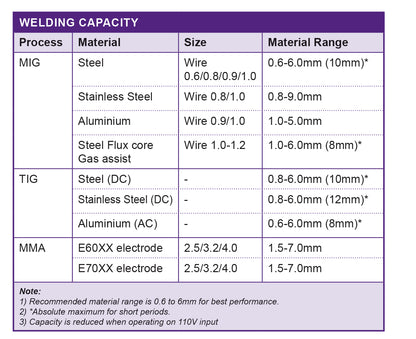

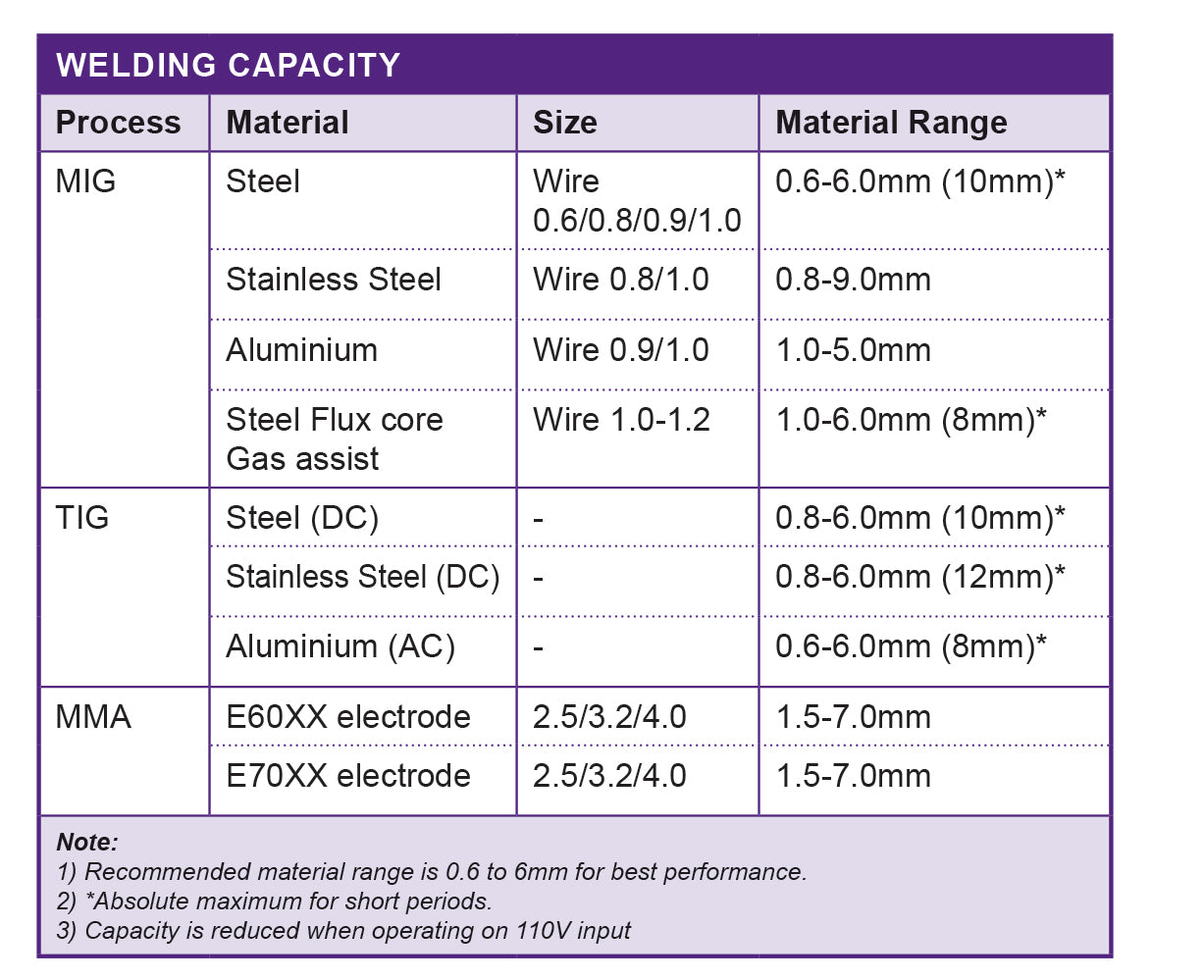

- Welding Capacity 6mm (230V input)
Specifications Include:
- Output Current -
- MIG - 140A (110V) and 200A (230V)
- TIG - 140A (110V) and 200A (230V)
- MMA - 110A (110V) and 200A (230V)
- Plasma - 25A (110V) and 40A (230V)
- Spool Size - 300mm (15kg) and 200mm (5kg)
- Feed Box - 4 Roll
- Wire Size - 0.6mm - 1.0mm
- Duty Cycle (MIG) - 200A @ 30%
- Input Voltage - 110V / 230V (Smart Switching)
- Input Current -
- MIG - 19.4A (110V) and 14.4A (230V)
- TIG - 17.7A (110V) and 12.5A (230V)
- MMA - 21.8A (110V) and 16.2A (230V)
- Plasma - 21.9A (110V) and 16.0A (230V)
- Minimum Fuse Rating 32A (110V) and 16A (230V)
- KVA - 3.7
- Generator Size - 7 KVA
- Enclosure Protection - IP23S
