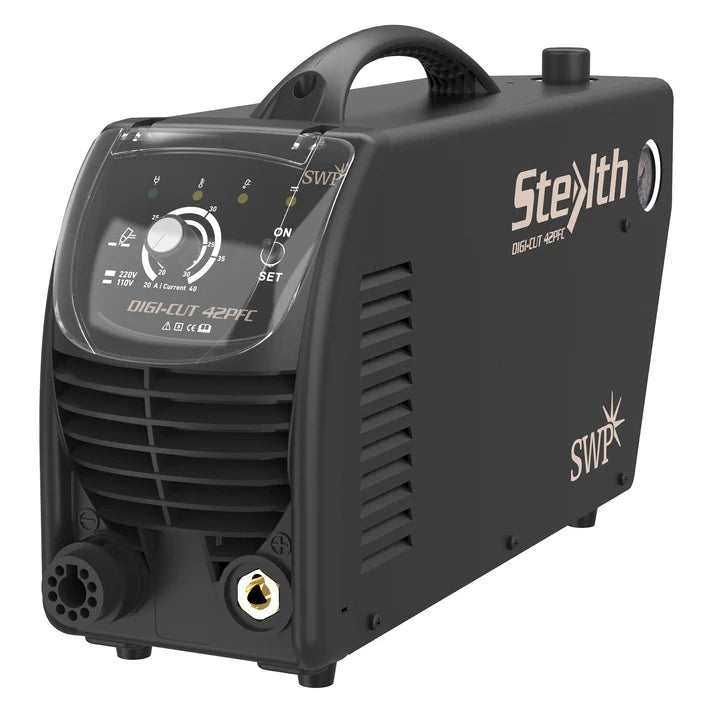

Stealth Digi-Cut 42 PFC Multi-Voltage 110V/240V Plasma Cutting Machine

The Stealth Digi-Cut 42 PFC Plasma Cutting Machine is perfect for advanced metal fabrication. With generator friendly contact arc striking and a complete air regulator, you can make clean cuts up to 15mm on any metal. Plus, Plasma torch, 3m earth return lead and 3m gas hose are included.

• Generator friendly
• Contact arc striking
• Complete with air regulator
• Clean cuts to 15mm
• Carry case supplied
• PC7100H plasma torch included
• BA55/200BS1 or BA3/200BS3 Recommended compressor at 100% Duty Cycle
• Generator friendly
• Power Factor Correction: 0.99

• Input power voltage (V): 110V/230V±10%
• Frequency (Hz): 50/60
• Effective input current (A): 110V 20.4 | 230V 16
• Maximum (kVA): 110V 3.8 | 230V 5.2
• Current adjustment range (A): 110V 20-30 | 230V 20-40
• Maximum no-load voltage (V): 320
• Duty cycle (A) (40°C 10 min) 110V: 35%@30 | 60%@22 | 100%@20
• Duty cycle (A) (40°C 10 min) 230V: 50%@40 | 60%@36 | 100%@30
• Severance cut for carbon steel (mm): 110V ≤20 | 230V ≤25
• Production cut for carbon steel (mm): 110V ≤10 | 230V ≤15
• Production cut for stainless steel (mm): 110V ≤10 | 230V ≤15
• Production cut for aluminium (mm): 110V ≤8 | 230V ≤12
• Production cut for copper (mm): 110V ≤6 | 230V ≤10
• Air operating pressure (psi): 50-90 (3.5-6bar)
• Air operating flow (l/min): 160 (5.65 cfm)
• Protection class: Ip23
• Insulation class: H
• Cooling: Air
• Overall dimensions (mm): 480 x 148 x 292
• Weight (kg): 8
• Accessories included: 3m earth return lead, 3m gas hose
