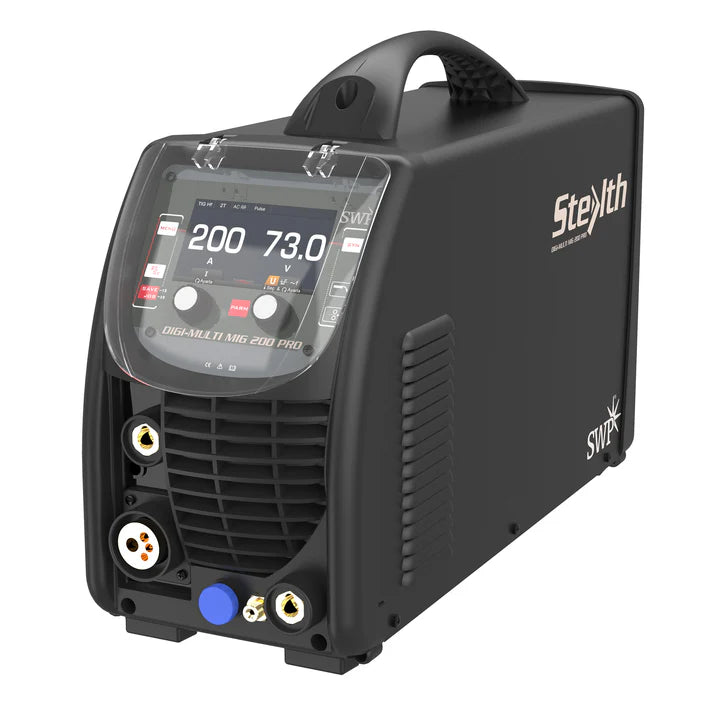

Stealth Digi-Multi Mig 200 Pro 4-in-1 Multi-Process 110V/240V MIG Welding Machine
Incl VAT
Introducing the Stealth Digi-Multi Mig 200 Pro, the compact and complete solution for all your welding needs. With multiple processes in just one machine, you can now increase efficiency and productivity with direct selection of SYN parameters and intuitive parameter settings.
- Multiple process with just one machine
- Compact and complete
- Direct selection of SYN parameters and intuitive setting of parameters can increase efficiency and productivity
- MIG SYN
- MIG Manual
- TIG AC PULSE (LIFT TIG/HF TIG)
- TIG DC PULSE (LIFT TIG/HF TIG)
- STICK AC
- STICK DC
Specifications
- Input power voltage (V): 110/230±10%
- Frequency (Hz): 50/60
- Effective current - 110V MIG: 20.5 | TIG: 19.8/19.3 (AC/DC) | MMA 19.2/20.2 (AC/DC)
- Effective current - 230V MIG: 15.4 | TIG: 12.2/12.1 (AC/DC) | MMA 15.2/16.7 (AC/DC)
- Duty cycle (A) (40°C 10 min) 110V MIG, TIG, MMA: 30%@200 | 60%@145| 100%@110
- Duty cycle (A) (40°C 10 min) 220V MIG: 30%@140 | 60%@100| 100%@80
- Duty cycle (A) (40°C 10 min) 220V TIG: 30%@160 | 60%@115 | 100%@90
- Duty cycle (A) (40°C 10 min) 220V MMA: 25%@130 | 60%@85 | 100%@65
- No load voltage - limited (V): 72V
- Welding current range (A) 110V: 30-140 MIG | 10-160 TIG | 10-130 MMA
- Welding current range (A) 230V: 30-200 MIG | 10-200 TIG | 10-200 MMA
- Welding voltage range (V) 110V: 15.5-21 MIG | 10.4-16.4 TIG | 20.4-25.2 MMA
- Welding voltage range (V) 230V: 15.5-24 MIG | 10.4-18 TIG | 20.4-28 MMA
- Efficiency (%): 80
- Power factor: 0.99
- Insulation class: H
- Protection class: Ip21S
- Cooling: Air
- Overall Dimensions (mm): 610 x 220 x 410
- Weight (kg): 21
- Accessories included: 3m Argon hose, 2m earth return lead
