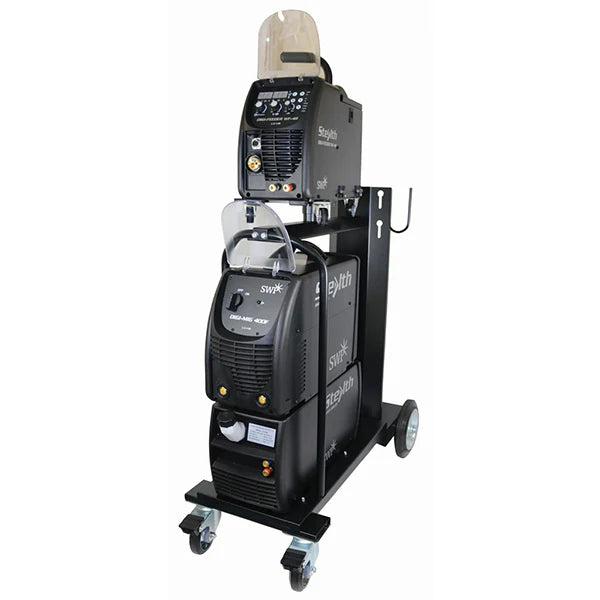

Stealth Digi-Multi Mig 400F 415V Three Phase MIG Welding Machine
Incl VAT
The Stealth Digi-Multi Mig 400F 415V Three Phase MIG Welding Machine offers added arc stability, even at low currents. Equipped with temperature, voltage, and current sensors, it allows for variable amperage control with a digital meter for precise welding. Includes a M501-4 torch, 2068 regulator, and 5m interconnecting cables. Optional 10m cables available for both air and water cooled packages.
- Waveform control for added stability of the arc - even at low currents
- Equipped with temperature, voltage and current sensors
- Variable amperage control with digital meter for a simultaneous welding current and tension display
- M501-4 torch and 2068 regulator included with the water cooled package
- M36-3 and 2068 regulator included with the air cooled package
- 5m interconnecting cables
- 10m interconnecting cables available - 9396H-98 A/C, 9396H-99 W/C
Specifications
- Input power voltage (V): 3-400±10%
- Frequency (Hz): 50/60
- Maximum (kVA): 21.3
- Effective input current (A): 24
- Welding voltage range (V): 16-34
- Maximum no-load voltage (V): 68
- Duty cycle (A) (40°C 10 min): 60%@400 | 100%@310
- Protection class: Ip21S
- Efficiency (%): 88
- Insulation class: H
- Cooling: Air/Water
- Overall dimensions (mm): 630 x 240 x 450
- Weight (kg): 23
- Accessories included: 3m earth return lead
