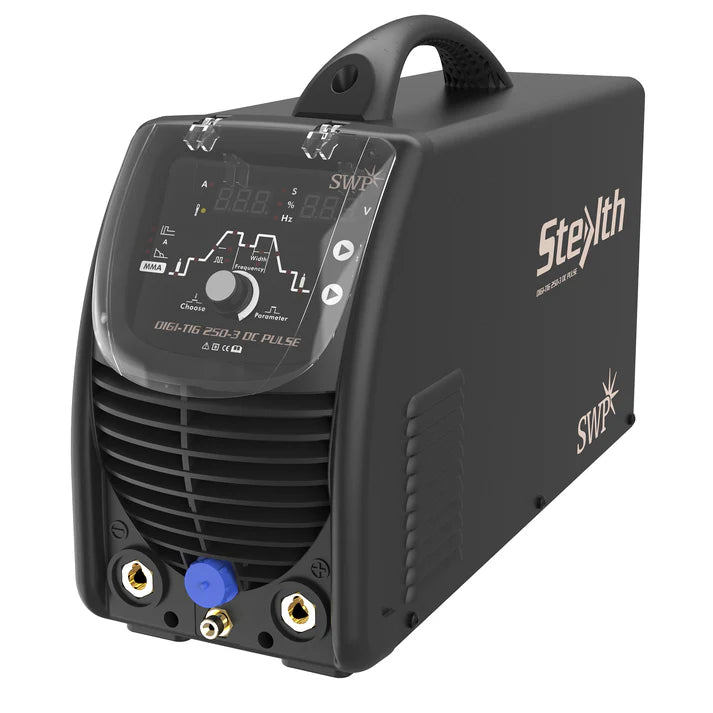

Stealth Digi-Tig 250-3 DC Pulse 3 Phase TIG Welding Machine with Cooling System

Stealth Digi-Tig 250-3 DC Pulse 3 Phase TIG Welding Machine with Cooling System

  • £1,975.00
    Unit price per
Incl VAT


The Stealth Digi-Tig 250-3 DC Pulse 3 Phase TIG Welding Machine with Cooling System is the perfect choice for heavy industrial use. With selectable pre/post slope time and various welding modes (MMA/LIFT TIG/HF TIG), it offers precise control and high performance on even the thinnest surfaces with no deformation. Equipped with sensors for temperature, voltage, and current, it ensures high protection and a high duty cycle for industrial applications. Optional trolley and water cooling unit available.



Specification

  • Heavy industrial use
  • Selectable pre/post slope time
  • Selectable up/down slope time
  • MMA/LIFT TIG/HF TIG
  • High performance on ultra thin surfaces with no deformation using pulse
  • Equipped with temperature, voltage and current sensors for high protection
  • High duty cycle for industrial applications
  • Optional trolley and water cooling unit
  • Input power voltage (V): 3-400
  • Rated input power (A): TIG 6 | MMA 8.6
  • Rated input current (A): TIG 14 | MMA 18
  • Effective current (A): TIG 11 | MMA 14
  • Duty cycle (A) (40°C 10 min): 60%@250 | 100%@195
  • No-load voltage (V): 70
  • Welding current range (A): 5-250
  • Up/Down slope (S): 0-10
  • Pre/Post flow (S): 0-2/0-10
  • Pulse frequency (Hz): 0.5-200
  • Pulse width range (%): 5-95
  • Weight (kg): 10.5
  • Dimensions (mm): 600 x 190 x 340
  • Accessories included: 3m Argon hose, Amphenol plug, 3m earth return lead
